Modular Buildings

High rise flats are the home of many families and can be devastating to many in the event of a fire. There have been various historic fires in high-rise buildings, which have changed the course of building regulations and fire safety laws surrounding them.

When a fire starts in one room in a high-rise flat, it can spread across various rooms if they’re not effectively covered and destroy the lives of multiple families.

The addition of a fire suppression system, such as iMist can assist with suppressing fires before they grow too large and spread. This in itself can give the residents in a block of flats time to evacuate the building and will not cause further damage to surrounded properties, through water damage.

Do you have a modular building you would like us to quote for free?

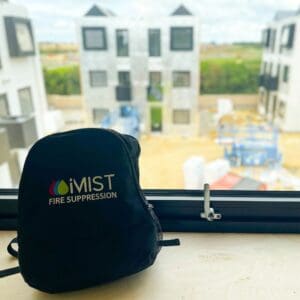

modular building case study in sough reading imist installed a fire suppression system

When do I need a fire suppression system in modular buildings?

BSI 9991 says you must have an AWFSS in the following circumstances;

5.2.1.2 Multi-Basement Buildings

For dwellings with multiple floors below ground level, a protected stairway, and an AWFSS, 9m meters should not be exceeded for from the foot of the protected stair to any habitable room

6.4 (b) Dwelling Houses with one or more storey greater than 7.5m in height (4 storeys)

A second, separate protected stairwell is not required if AWFSS is fitted throughout.

9.1 (d) Internal Planning of Flats and Maisonettes

Flats or maisonettes with an open plan arrangement and more than one floor should have a protected stairway and AWFSS fitted. This allows escape to the shared external entrance.

9.7 Open Plan Layouts

Open planned flats are permissible with a fully fitted AWFSS

9.3 (b) Provision of inner rooms in flats not more than 4.5m in height

Inner rooms are not suggested unless the use of an AWFSS is utilised throughout the entire building, along with a grade D LD1 Fire detections and fire alarm system in accordance with BS 5839-6:2013.

9.4.2 (a) Extended travel distances within an open-plan flat

Flats more than 4.5m above ground level that are entered on the same level can increase total travel distances to the entrances from 9m to 20m with the use of AWFSS throughout the entire building, along with a LD1 fire detection and fire alarm system in accordance with BS 5839-6:2013.

11.1 Flats where occupants are not capable of independent evacuation

It is possible to use provisions o an AWFSS where the use of the building is required for people not capable of independent evacuation (excluding common corridors and stairways). It is further possible to protect common areas (excluding common corridors and stairways) using provisions of an AWFSS where the use of the building is required for people not capable of independent evacuation.

Modular Buildings Case Studies

Bath Road – Slough

As London is struggling to accommodate the demand for housing, modular design offers innovative housing with great design, quality, cost  and fire protection. iMist installed a fire suppression system within each unit.

Ashington Gardens – Brighton

Ashington Gardens in Brighton have a new development full of modular buildings. Each home was fitted with a fire suppression system to ensure each home was protected from the unlikely event of a fire.

Modular Buildings Testimonials

In an industry that requires the highest standard of installation, this is the company for you. I can't speak highly enough of them! They have been incredibly understanding throughout the project, and they have helped us with many questions and problems we have from other construction companies.
I can't stress to anyone reading this enough that you must be careful with companies in this market as there are many who are corrupt, but in I-Mist you are in safe hands!
